Professional open mixing mills for rubber compounding, warming, and sheeting. Fully customizable — roll type, gearbox, motor, and safety package.
Get a Free Quote →
Trusted by rubber product manufacturers across multiple industries worldwide.
Mix NR, SBR, NBR, EPDM and other rubbers with carbon black, oils, and additives for uniform compound.

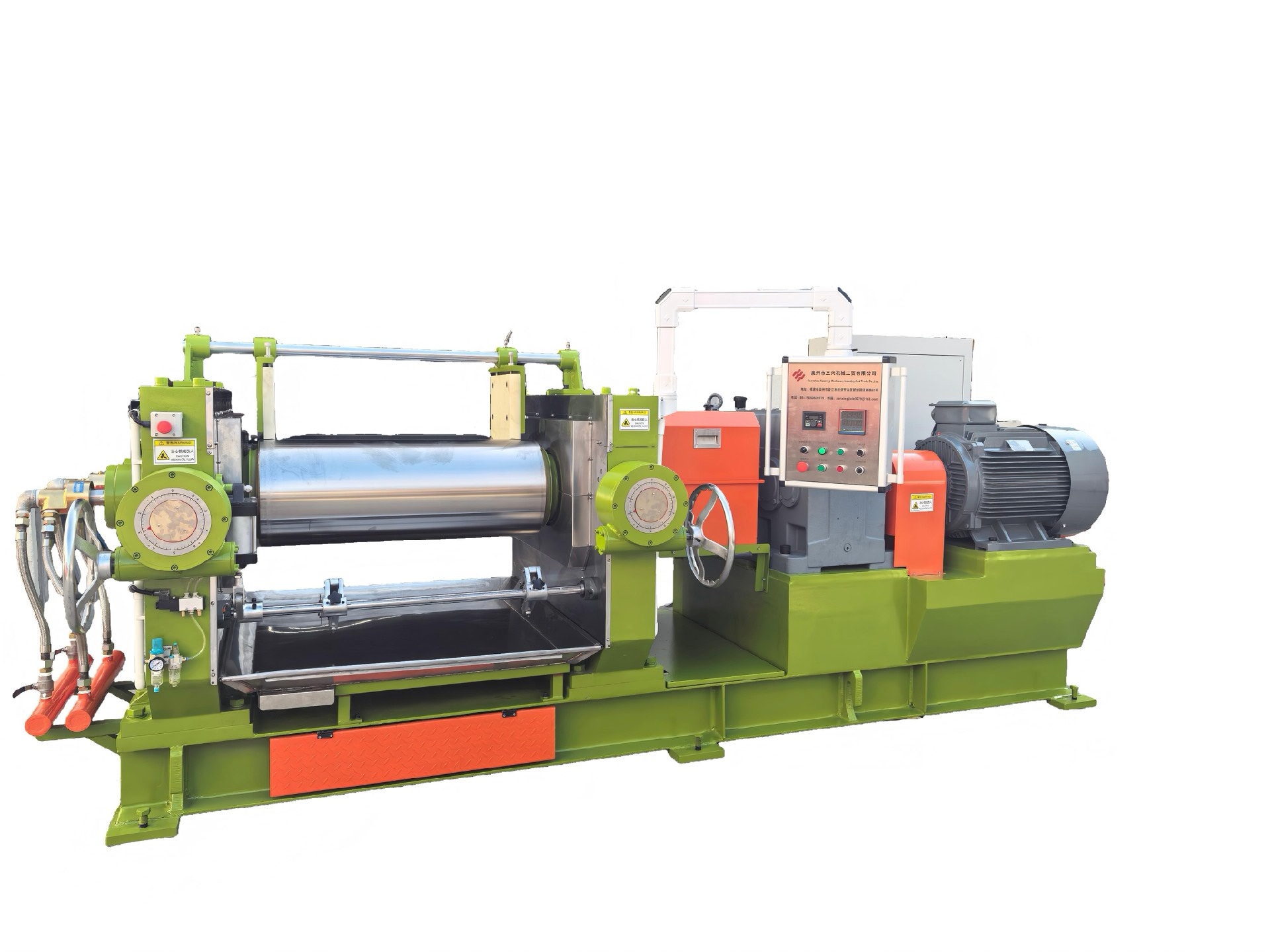

Small batch testing for formulation development. 4″ and 6″ models fit any lab bench.

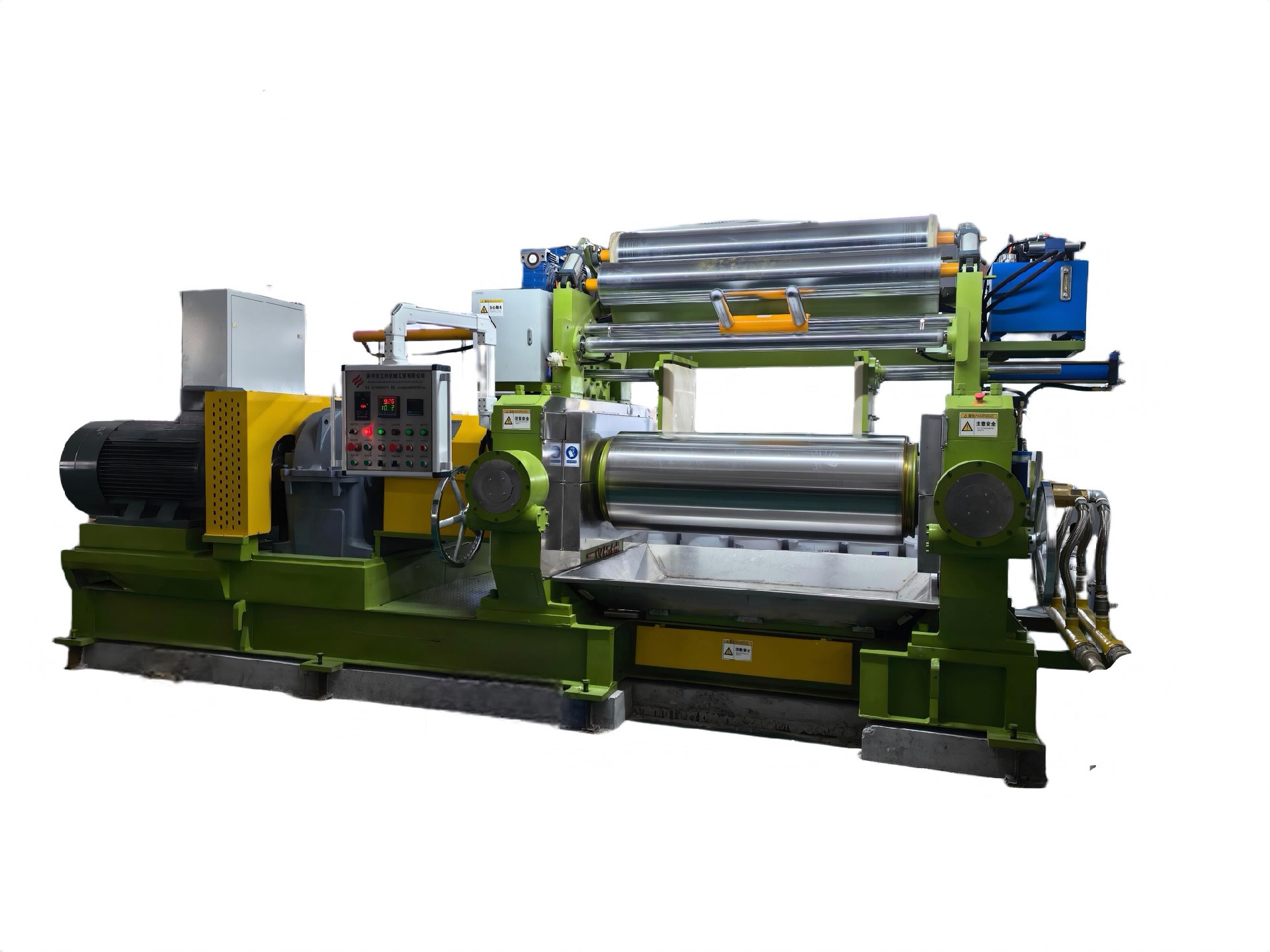

Prepare warm, consistent compound for calenders, presses, and extruders in production lines.
Break down and re-mix recycled rubber materials into usable sheets.
Practical advantages that make a real difference on your production floor.
Chilled cast iron rolls, surface hardness HS68-75, wear-resistant and durable. Choose hollow rolls for standard rubber processing or upgrade to drilled rolls for precision temperature control within 2°C across the roll face.
LTG-H chilled cast ironSwitch friction ratio by changing external gears — convert from mastication to sheeting in under an hour. No need to swap the entire gearbox. One machine, multiple processes.
External ratio gearsEmergency stop cable across the roll · Knee-operated reverse stop · Emergency stop buttons on both sides · Safety fuse disc protects rolls from overloading. Ready for CE and UL certification requirements.
CE-ready designRotary joints feed cooling water or steam through the roll cavity for consistent temperature. Lab models come standard with electric heating. Upgrade to drilled rolls for the fastest thermal response.

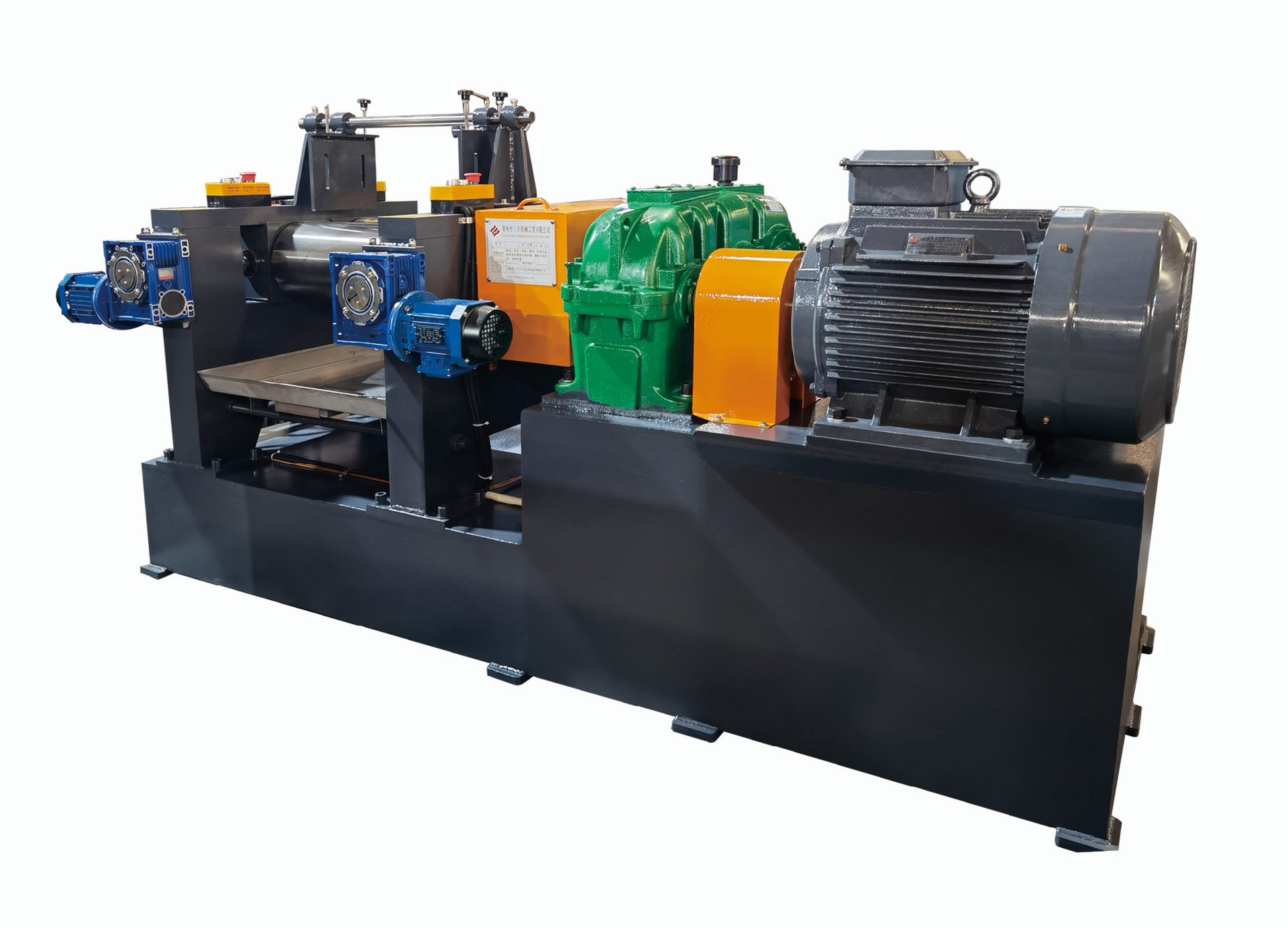

Rotary joint system6-pole motors (970 rpm) deliver high torque at low speed — ideal for rubber mixing. Upgrade to IE5 permanent magnet synchronous motor with VFD drive for 15-25% energy savings. Drop-in replacement, no gearbox change needed.
15-25% energy savingsOpen structure is easy to clean between color changes. Stainless steel drip tray and stock guides come standard. All major components — rolls, gearbox, motor — are standard parts readily available. No custom parts to wait for. Ideal for small to medium factories.
Standard componentsBelow are standard configurations. All models can be customized to your requirements.
| Parameter | 4″ Model | 6″ Model | 9″ Model |
|---|---|---|---|
| Roll Diameter × Length | 100 × 350 mm (4″ × 14″) |
155 × 535 mm (6″ × 21″) |
230 × 630 mm (9″ × 25″) |
| Front Roll Speed | 7.2–8.5 m/min | 8.9–10.2 m/min | 12.5 m/min |
| Friction Ratio | 1 : 1.25 | 1 : 1.30 | 1 : 1.25 |
| Motor Power | 4 kW / 5.4 HP | 7.5 kW / 10 HP | 18.5 kW / 25 HP |
| Batch Capacity | 1–2 kg | 3 kg | 5–15 kg |
| Roll Gap Range | 0.1–5 mm | 0.1–5 mm | 0.1–6 mm |
| Temperature Control | Water cooling / Electric heating |
Water cooling / Electric heating |
Water cooling / Electric heating |
| Parameter | 10″ | 12″ | 14″ | 16″ | 18″ | 22″ | 24″ |
|---|---|---|---|---|---|---|---|
| Roll Dia. × Length | 250×630 mm 10″×25″ |
300×800 mm 12″×31″ |
360×900 mm 14″×35″ |
400×1060 mm 16″×42″ |
450×1200 mm 18″×47″ |
560×1530 mm 22″×60″ |
610×1830 mm 24″×72″ |
| Front Roll Speed | 14.1 | 15.1 | 16.3 | 18.7 | 24.3 | 27.8 | 28.6 m/min |
| Friction Ratio | 1:1.17 | 1:1.25 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.20 | 1:1.10 |
| Motor Power | 18.5 kW 25 HP |
22 kW 30 HP |
30 kW 40 HP |
37–45 kW 50–60 HP |
55–75 kW 74–100 HP |
110–132 kW 148–177 HP |
160 kW 215 HP |
| Batch Capacity | 5–15 | 20–25 | 20–30 | 25–35 | 30–50 | 50–60 | 120–140 kg |
| Roll Gap | 0.2–10 mm | 0.2–15 mm | |||||
Custom sizes and non-standard configurations available upon request.
The right ratio improves mixing quality and prevents scorching.
Every machine can be built to your exact process needs.
